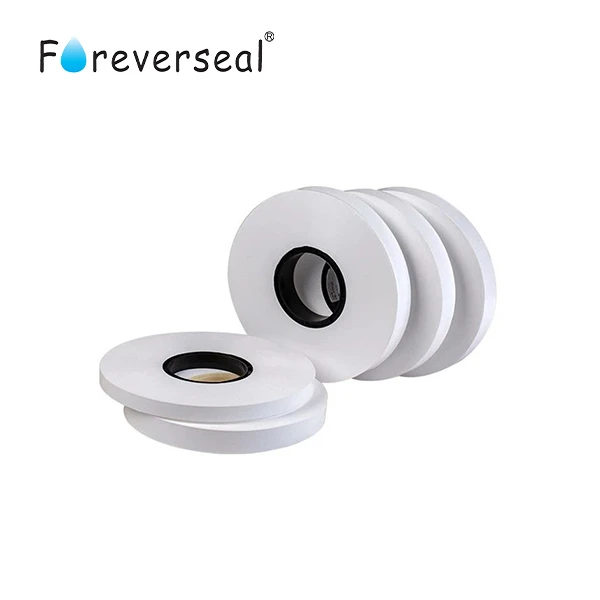

Ptfe Paste Extrusion Film

Ptfe paste extrusion film is used as primary insulation for high-temperature wires, cable jackets, and convoluted hose walls. These products are used in microwave and coaxial cable applications where low dielectric constant and high velocities are required. Cross-winding spools and flat spools are adapted to individual needs. We can offer widths from 4mm and very low thicknesses and densities.





● PTFE(Polytetrafluorethylene)

● Expanded, natural or white

● Thickness: 0.102mm

● Width: 4mm - 200mm

● Standard density: 0.75g/cm3





● High temperature and chemical resistance

● Flammability resistivity

● High porosity results in superior dielectric properties

● High tensile strengths that support fast wrapping speeds

● Long joint free lengths

● RoHS and REAH compliant





● Wire and cable insulation for extreme chemical and thermal environments

● Binder tape in cable constructions and wire harnesses

● Dielectric material in coaxial cables

● Convoluted hose constructions

● And more





Thickness	0.0040"
	(0.102mm)
Tolerance	±0.00025"
	±0.006mm
Width	4 - 200mm
Density	0.75g/cm3
Tensile Strength （minimum）	12 MPa
Elongation （minimum)	50%
Joint Free Lengths	> 200m





Slitting and packaging:

Slitting width of 4mm to 200mm, the winding roll maximum OD 300mm, the plastic cores ID 76mm with flat pad and step pack/solid pad.



Storing Recommendations for Unsintered Tapes

For maximum shelf life, it is recommended that PTFE films are stored in a clean, temperature-controlled environment at or below 21C with relative humidity below 50%.



FAQ:



Customer: How is your packing for ptfe film?

Foreverseal: The packing is flat pad and step pack/solid pad



Customer: How does PTFE FILM affect the fire resistance of cables?

Foreverseal: PTFE FILM has properties of and fireproof. When burning, the insulating material is not in direct contact with the flame but is melted by heat. At the same time, PTFE FILM will not affect the softness of the cable.



Customer: What’s the ptfe film width you can make?

Foreverseal: 4mm to 200mm
